Green Tape for laminated glass safety glazing, EVA INTERLAYER, PVB FILM, SGP INTERLAYER

Green Tape for laminated glass safety glazing, EVA FILM, PVB FILM, SGP INTERLAYER

Green Tape for safety glass laminating

Green Tape is to fix pre-laminated glass with EVA FILM, PVB FILM,SGP FILM.
And Green Tape is to perfectly prevent the melt EVA FILM overflowing through laminated glass edges in the oven when heating. Green Tape is high temperature resistance. CNC Green Tape can stand continuously heating more than 180℃ with strong tear resistance.

What is the specifications of Green Tape?
25mm*66M/roll
30mm*66M/roll
35mm*66M/roll
40mm*66M/roll
50mm*66M/roll
……
65mm*66M/roll
980mm*66M/roll

If we use the CNC Green Tape to seal the edges of pre-laminated glass to prevent the exit out of the EVA in the glass laminating oven, will the Green Tape prevent the de-airing vacuuming? do we need to make some holes on the CNC
Green Tape for vacuuming the air out?

It depends. If you don’t make holes on the CNC Green Tape, and you make EVA laminated glass successfully without bubbles, then you don’t need to make holes on the CNC Green Tape, so you can get the cleaner result of the edges of the
final laminated glass. But if you don’t make holes on the Green Tape, but you face bubbles in the corners or edges of the laminated glass, then it’s better you make some holes on the CNC Green Tape to help pre-laminated glass vacuuming.

Does CNC Green Tape leave glues on the glass?
NO! No remains left of CNC Green Tape on glass surface after peeling off. CNC Green Tape can stand continuously heating more than 180℃ with strong tear resistance.

CNC Glass Interlayer
www.cncglass.com www.c-n-c.com
[email protected] [email protected]
Product 1]Super Clear EVA Film for safety laminated glass
Product 2]Milky White EVA Film for safety laminated glass
Product 3]Green Tape and Thermal Cleaning Cutter for EVA film safety laminated glass glazing

Package of Smart film, Smart glass film

Package of Smart film, Smart glass film, Privacy glass film

Smart Film
Non adhesive; For glass laminating with EVA Film
The Smart Film is not adhesive, to be laminated with EVA film/PVB film in laminating oven.

Standard Fixed Width120cm*Any Length
Standard Fixed Width150cm*Any Length
Standard Fixed Width180cm*Any Length

How To Calculate the Square Meter Quantity?
We use Standard Fixed Width to cut the right size as clients require.The quantity is based on how big of the standard size we need to cut the right size.

Example 1, if you need 110cm*80cm, we will use 120cm*80cm to cut the right size of 110cm*80cm and a waste of 10cm*80cm, so the amount will be calculated based on 120cm*80cm. And if you want, you can take all the smart films (the right size of 110cm*80cm and a waste of 10cm*80cm).

Example 2, if you only need 50cm*50cm, we will use 120cm*50cm to cut 2 pcs of 50cm*50cm and a waste of 20cm*50cm, and you will have to order 2 pcs of 50cm*50cm together at the same time, and the amount will be calculated based on 120cm*50cm. And if you want, you can take all the smart films( 2 pcs of 50cm*50cm and a waste of 20cm*50cm).

Example 3, if you need 170cm*130cm, we will use 180cm*130cm to cut the right size of 170cm*130cm and a waste of 10cm*130cm, so the amount will be calculated based on 180cm*130cm. And if you want, you can take all the smart films(the right size of 170cm*130cm and a waste of 10cm*130cm).

Electrical Transformer
Optional; Clients can offer the Electrical Transformer by themselves.

Notes:
*If you are not experienced, it’s better to let us assemble the electronic connector(busbar) for you.
*To protect the smart film, we suggest shipping by air or by express, like DHL, FEDEX, UPS, etc.
*The weight of smart film for shipping will be calculated by Dimensional Weight, because the package is light, but bigger in dimension.

CNC Glass Interlayer(China)
[email protected] [email protected] www.cncglass.com http://cnc.glass/

Thermal Interlayer Trimmers, electrics plug, for safety laminated glass

Thermal Interlayer Trimmers, electrics plug, for safety laminated glass

EVA Thermal Cutter
to clean laminated glass edges overflowed remains of EVA, PVB, SGP etc.
Application:
When making laminated glass with EVA film(or PVB film, SGP film) there may be some overflowed EVA remains (or PVB remains, SGP remains) on the edges of laminated glass after heating in the oven, EVA Thermal Cutter is the handhold tool to clean the laminated glass edges remains easily.

How it work:
The blade of the EVA Thermal Cutter can be up to 500℃ in seconds. The EVA Thermal Cutter use the ultra high temperature heat to cut the EVA remains (or PVB remains, SGP remains) of the laminated glass edges.

The EVA Thermal Cutter cleans the overflowed remains NOT by strength or sharp, but by Ultra High Temperature Heat: 500℃. So whether the interlayer film is EVA FILM, PVB FILM, or SGP INTERLAYER, the result is the same.

Data:

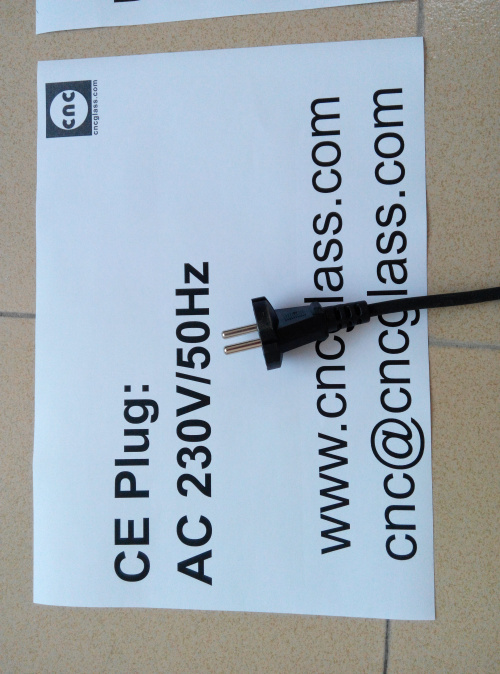

CE Plug: AC 230V/50HZ
US Plug: AC 120V/60HZ
Temperature of Blades: Up to 500 ℃ in in approx 5-7 seconds
Thermal Cutter is available in 4 shapes of blades to remove the remains of laminated glass edge.

Comments from Our Clients:
*Client 1:
Peter,
The Thermal Cutters were received 10/9, in the afternoon. I have already used them and they work great. Much better than the method I was using before.
*Client 2:
Dear Olivia,
My people are very happy with the cutting tool.
